National Elevated Fall Pro is a leading rental supplier of mobile fall protection equipment from Malta Dynamics. We have the X1250 and X1260 models available in addition to the confined space rescue/retrieval kit. The XSERIES mobile grabber family features high-quality and practical equipment for your company’s needs. The systems are American-made and engineered to perfection, providing clients with the best in overhead anchorage. All of the mobile grabber systems are tested to ensure they meet OSHA fall protection standards. See below for more information on the equipment that we provide for rent.

We serve the New Mexico, Arizona, and Colorado areas.

For more information, please fill out the form or give us call.

Albuquerque, NM Office
P: (505) 450-9234
E: info@nationalelevatedfallpro.com
Las Vegas, NV Office
P: (702) 843-5401
E: info@nationalelevatedfallpro.com
Hours

Monday-Friday, 7:00am - 5:00pm

XSeries Information

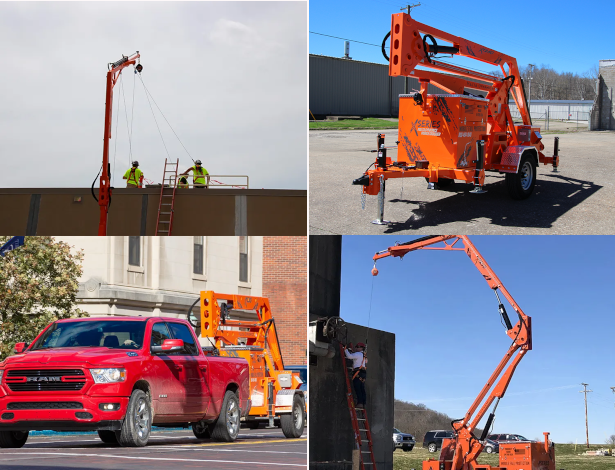

A mobile fall protection system can improve worker safety by providing reliable temporary fall protection solutions. Fall protection trailers and systems help worksites comply with Occupational Safety and Health Administration (OSHA) fall protection regulations when there is no access to a permanent anchorage point. Click the link below for a great introductory video on the XSeries!

Mobile Fall Protection Anchor in the Sky - The Malta Dynamics XSERIES Mobile Grabber

The X1250 provides 3 overhead tie-off points with a maximum anchor capacity of 310 pounds. Adding a 5 foot extendible mast allows 1 worker to tie-off up to 34 feet.

Detailed information on the X1250

The X1260 has overhead anchor points for 5 users and supports up to 310 lbs of worker weight on each point. Using a 5 foot extendable mast, this unit stretches into the air and allows 1 user to tie off at up to 34 feet.

Detailed information on the X1260

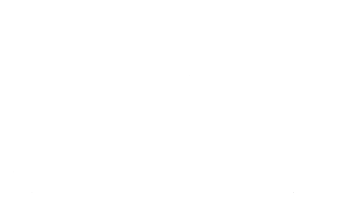

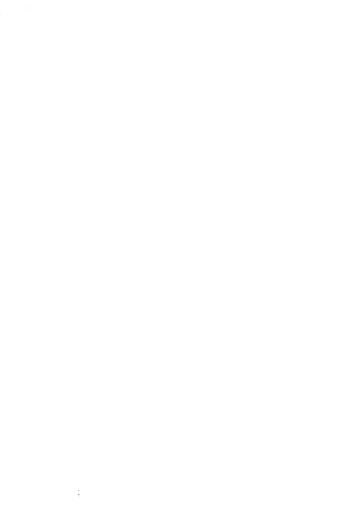

XSeries Dimensions

Max Working Height
34 feet (10.4 meters)
Min Working Height
2 feet (0.6 meters)
Max Folded Height
8 feet 1 inch (2.6 meters)
Frame Width
5 feet 9 inches (1.8 meters)
Overall Length
15 feet 6 inches (4.7 meters)
Max Arm Reach Out
9 feet - 9.5 feet (3 meters)

XSeries Confined Space Rescue & Retrieval Kit

Detailed information can be found at Malta Dynamics website.

The Confined Space Rescue and Retrieval Kit can be used with our XSeries rentals. National Elevated Fall Pro has the kit for your use, including the add-ons shown in the gallery below! Please contact us for more information!

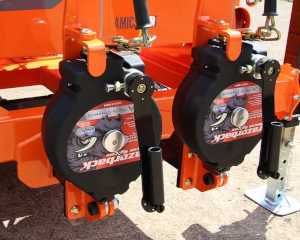

The Confined Space Rescue/Retrieval Kit not only provides fall protection but also includes bi-directional winching capabilities, allowing an attendant to rescue a worker in need by raising or lowering them to a safe level. This optional kit helps to satisfy the OSHA requirement for rescue/retrieval options for confined spaces.

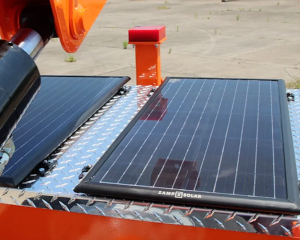

Maintain power to the unit maintenance-free by adding high efficiency solar panels. The twin 45-watt crystalline solar panels are weatherproof, shatterproof, and built with a rugged aluminum frame for superior durability. The charge controller protects the battery from overcharge and discharge to ensure years of worry-free use and consistent power for your unit.

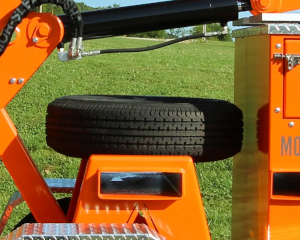

This optional kit includes a spare tire and all needed hardware to be mounted to any XSERIES model. It can be easily installed with a few hand tools.

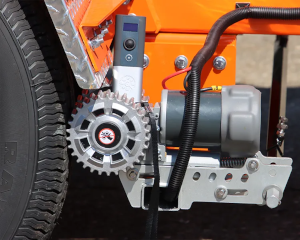

Add independent mobility for finer positioning at your work site. This system adds two electric motors that drive the wheels independently, allowing you to position the unit without a vehicle attached.
